Optical Transceivers for Mobile Radio Access Network
NEC 25G Tunable SFP Technical Demonstration

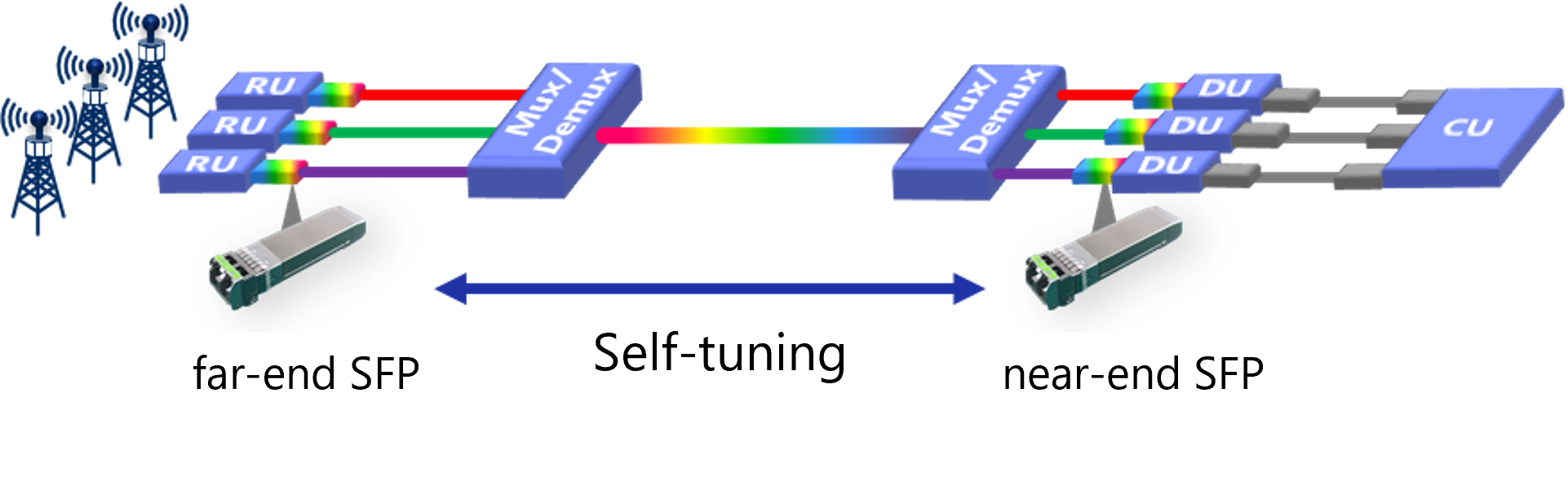

This video demonstrates the Tunable SFP’s Self Tuning Function. The Self Tuning Function searches for appropriate optical wavelengths and establishes signal connection automatically to the far end SFP. This innovative feature significantly reduces installation tasks.
10Gb/s C-Band DWDM Tunable SFP+ Optical Transceiver
| Speed | Form | Part Number | Wavelength | Distance | Specification |
|---|
| 10.3Gb/s | SFP+ | OD-CP10xTELA000 | C-Band
100GHz Grid | 80km | datasheet |
Comply with the Smart Tunable MSA
25Gb/s C-Band DWDM Tunable SFP28 Optical Transceiver
| Speed | Form | Part Number | Wavelength | Distance | Specification |
|---|
| 25.7Gb/s | SFP28 | OD-CP10xTEL0000 | C-Band
100GHz Grid | 15km | datasheet |
Comply with the Smart Tunable MSA
25Gb/s O-Band WDM SFP28 Optical Transceivers
| Speed | Form | Part Number | Wavelength | Distance | Specification |
|---|
| 25.7Gb/s | SFP | OD-CP104FLL1xxx | 8ch | 30km | datasheet |
| 25.7Gb/s | SFP | OD-CP104FLL1xxx | 16ch | 30km | datasheet |
| 25.7Gb/s | SFP | OD-CP104FLL1xxx | 24ch | 30km | datasheet |
25G SFP28 BiDi LR/ER Optical Transceiver
| Speed | Form | Part Number | Wavelength | Distance | Specification |
|---|
| 25.7Gb/s | SFP | OD-BP10xxxL | 1270nm/1310nm | 10km/30km | datasheet |
25G SFP28 BiDi ZR Optical Transceiver
| Speed | Form | Part Number | Wavelength | Distance | Specification |
|---|
| 25.7Gb/s | SFP | OD-BP10xxZL | 1296nm/1309nm | 60km | datasheet |
25G SFP28 BR40 BiDi Optical Transceiver
| Speed | Form | Part Number | Wavelength | Distance | Specification |
|---|
| 25.7Gb/s | SFP | OD-BP10xxxL | 1289nm/1314nm | 40km | datasheet |
50G SFP56 BR40 Lite Optical Transceiver
| Speed | Form | Part Number | Wavelength | Distance | Specification |
|---|
| 53.1Gb/s | SFP | OD-BP11xxxL | 1289nm/1314nm | 30km | datasheet |
Dual SFP Optical Transceiver
| Speed | Form | Part Number | Wavelength | Distance | Specification |
|---|
| 2×25.7Gb/s | DSFP | OD-BD10xxxL | 1270nm/1330nm | 10km | datasheet |
Source: https://www.nec.com/en/global/prod/fod/products/sfp_family/index.html
